Rhein-Galerie, Ludwigshafen, Germany
Solutions for building control systems
| Place / Country: | Ludwigshafen am Rhein, Germany |
| Year: | 2010 |
| Building type: | Shopping mall |
| Solutions: | Ventilation Flap PR60 Glass Roof KWS 60 Building automation / CI Control Technology Pneumatic upstroke opener (tandem drives) Heat insulation glazing |
| Efficiency: | 32% energy saving Uw=1,3 W/(m²K) vs. Uw=1,9 W(m²K) as per German Energy Performance of Buildings Directive 2009 |

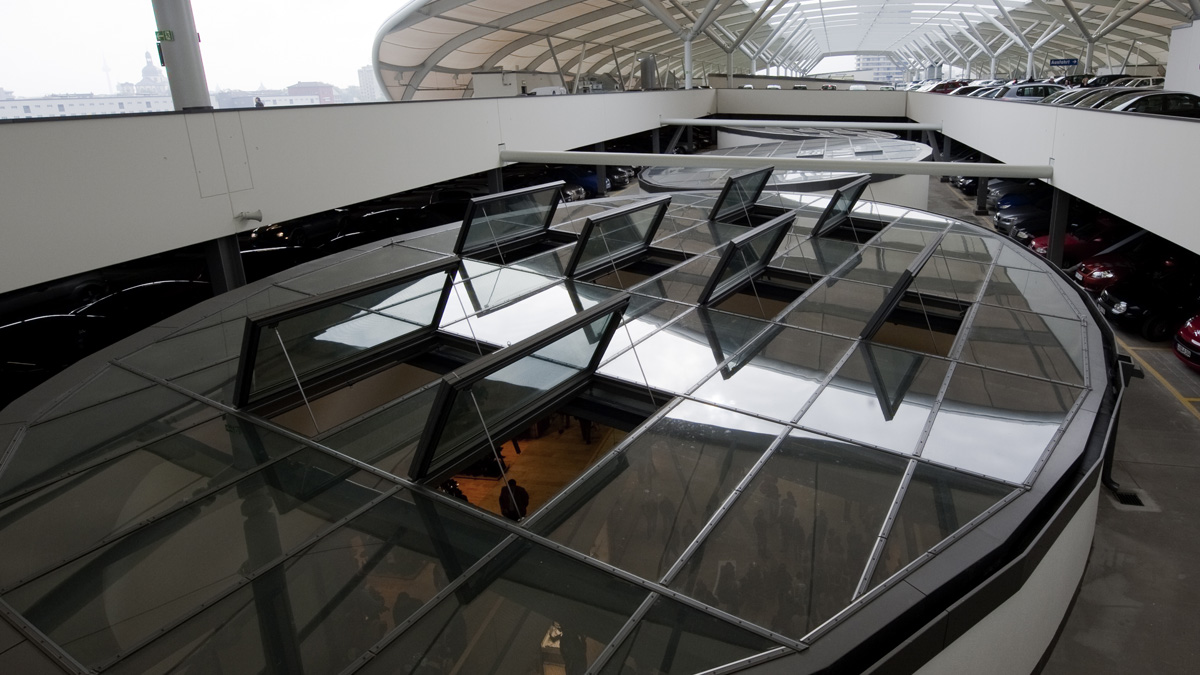

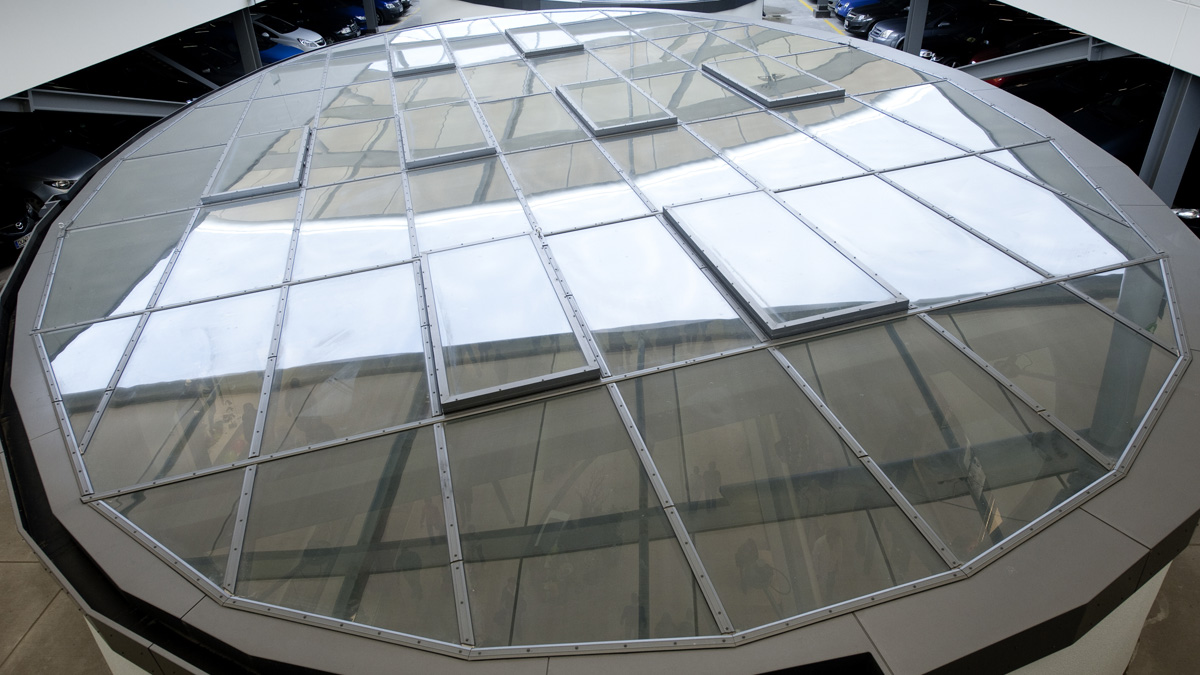

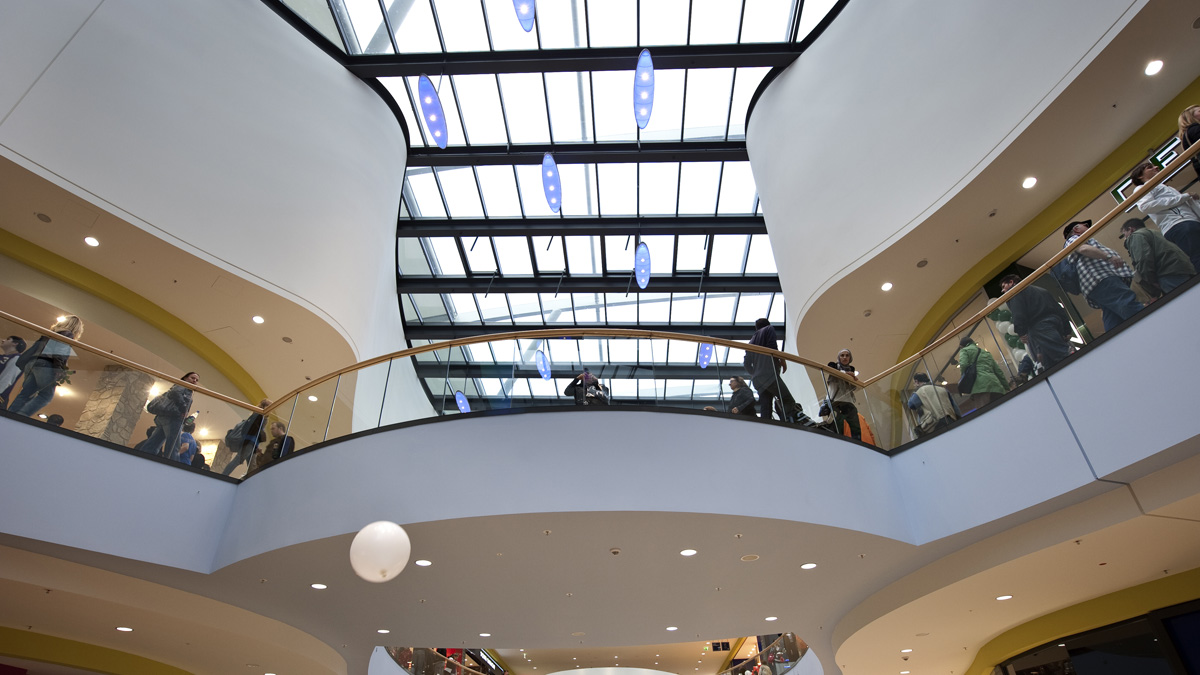

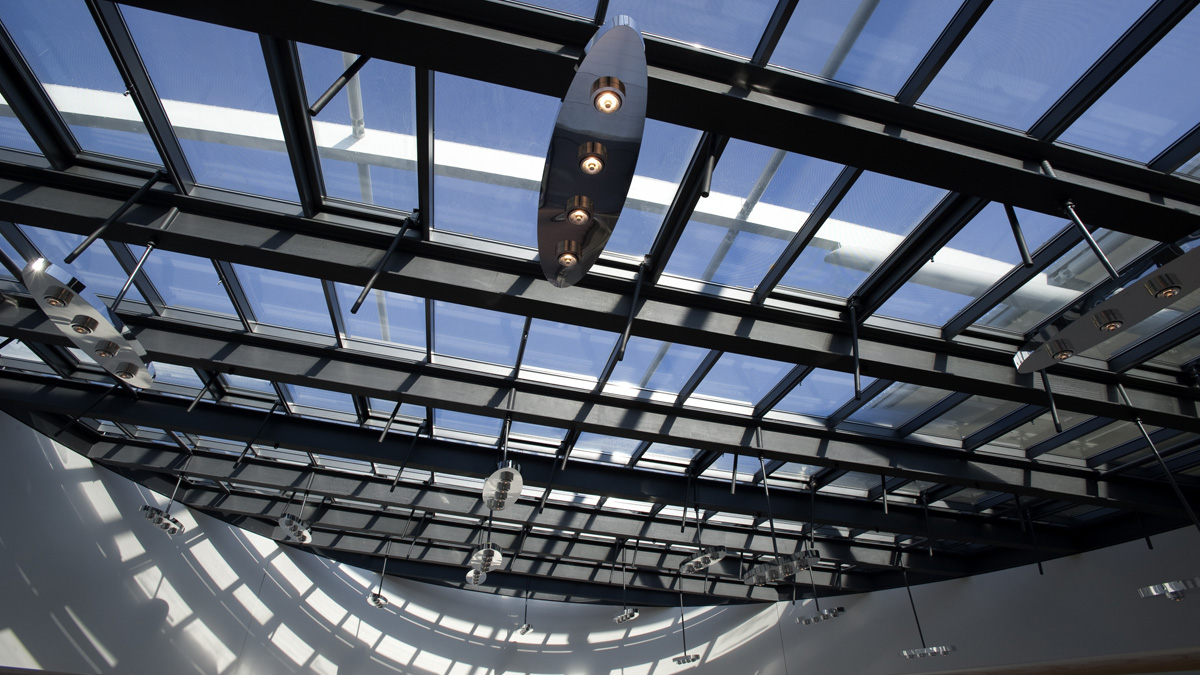

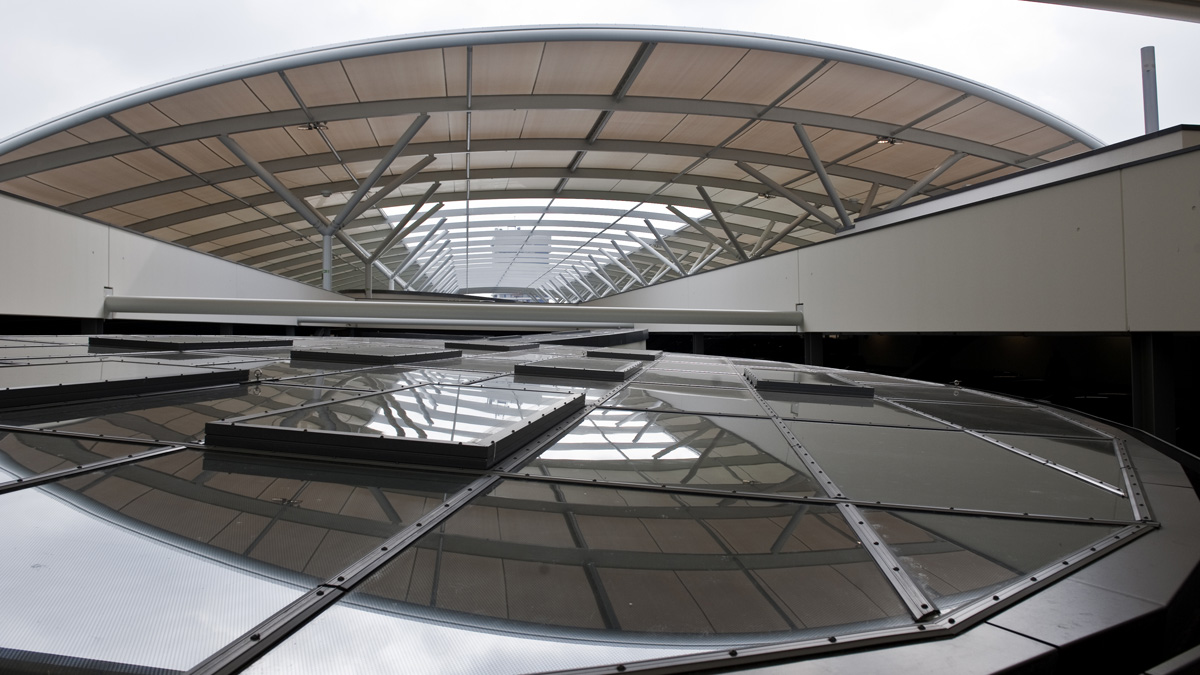

330 metres long, this two-storey shopping mall is provided with plenty of natural daylight thanks to several elliptic glass structures with a total surface of 2,900 m² along the length of its gallery. This results in lower power requirements for electric lighting, which, in turn, considerably reduces CO2 emissions into the environment.

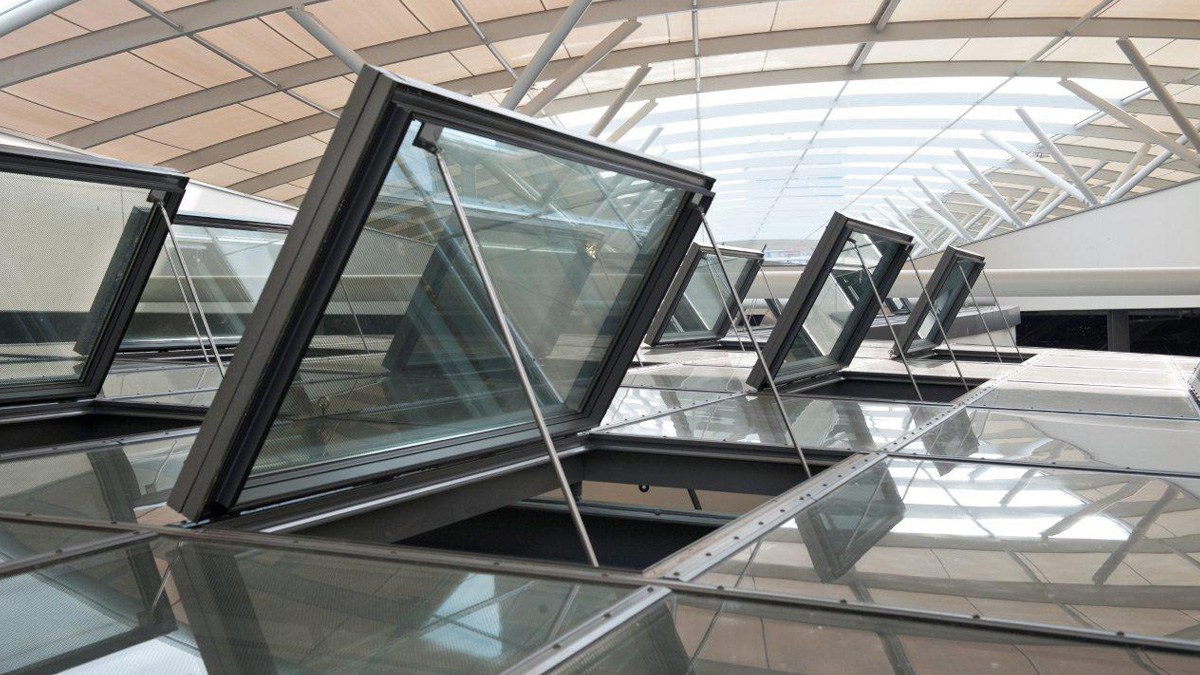

- Integrated flap systems for SHEV function and natural ventilation; light transmission tested to EN 12207 (Class 4), watertightness as per EN 12208 (Class E1200), resistance under wind load as per EN 12210 (Class C4/B5)
- Thermally separated, extruded aluminium sections
- Conceptual design and installation of control devices
- Control process automation for SHEV and ventilation functions
- Connected to building control technology via Modbus connection
